Equipotential Earth Mat – HP
Product Code: EPRSM-75MB
HORIZON POWER APPROVED

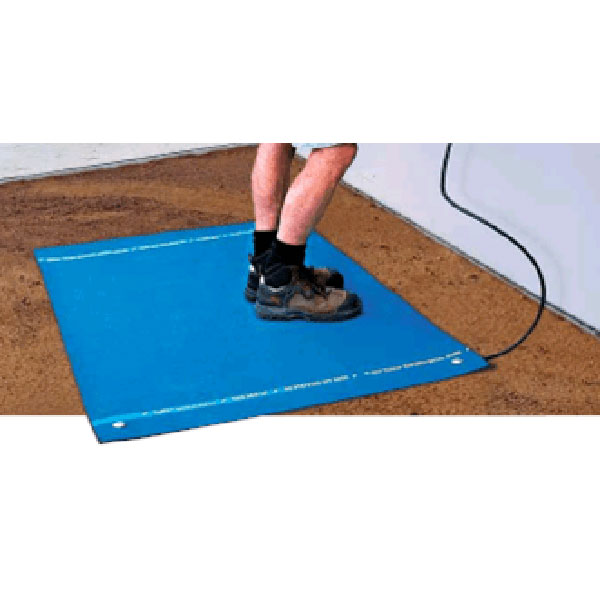

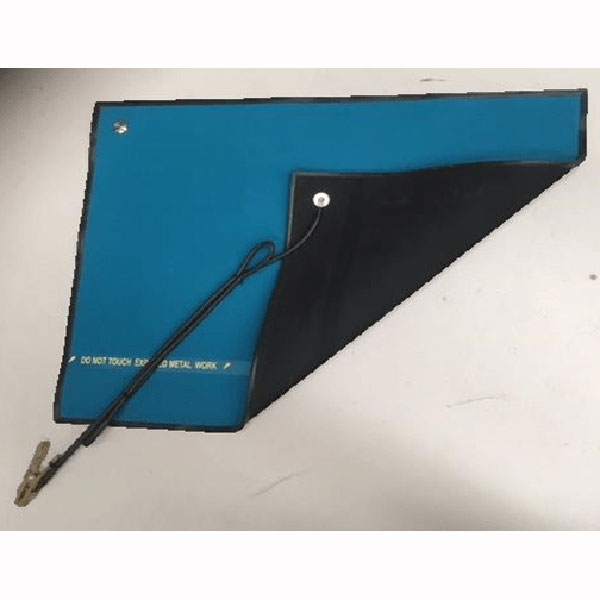

The EPR Safety Mat has a unique three layer design. The central, electrically-conductive layer rapidly equalises the electrical potential across the mat. The upper layer insulated the asset from the electrically-conductive layer. The lower layer is a special electrically-conductive elastomer that protects the central layer and provides electrical continuity to that layer.
Specifications:
- 1000mm x 750mm Earth Potential Rise Safety Mat
- Material:
- Layer 1 – NBR-PVC Rubber (non conductive, course fabric, non slip finish) TOP
- Layer 2 – Stainless Steel 316L Fine Wire Mesh MIDDLE
- Layer 3 – NBR PVC Rubber (Conductive Medium Fabric non slip) BOTTOM

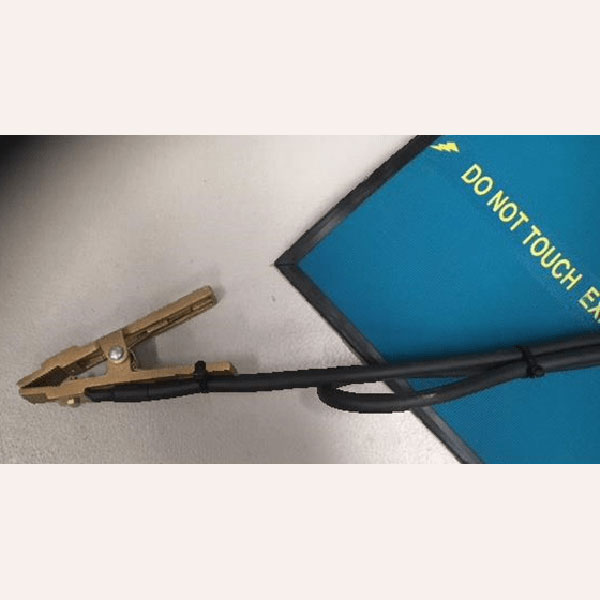

- Bonding Kit: 2m Single core flexible conductor with black insulation and Heavy duty spring clamp
