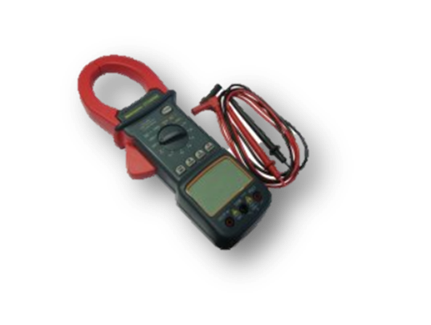

Digital AC DC Clamp Meter

Product Code: CIE2606

  • Digital AC Amps/ DC Amps Clamp Meter
  • 3 digit, 3999 counts, Bar Graph display
  • DC volts (Auto) 0-400mV/4/40/400/1000V 0.5%
  • AC volts (Auto) (True RMS)
  • DC current 0 – 200A/1000A +-1.5%
  • AC current (True RMS) 0-200A / 1000A +-1.5%
  • Resistance (Auto) 0-400W/4kW/40kW/400kW/4MW/40MW +-1.0%.
  • Capacitance (Auto) 0-4nF/40nF/400nF/4F/40F +-1.5%
  • Frequency (Auto) 0-100Hz/1kHz/10kHz/100kHz/400kHz +-0.5%



Digital Clamp Meter
Diode Test.

Continuity test.

Data Hold.

Max/Min Hold.

Peak Hold.

(Zero) Relative.

Auto Power Off.

Jaw opening capability

57mm Conductor.
70mm x 18mm bus bar.
Safety Test Leads.
Safety Input Jacks.
Overload Protection on all Ranges.
Safety IEC 1010-1,IEC 1010-2-032
UL, CE Approved
